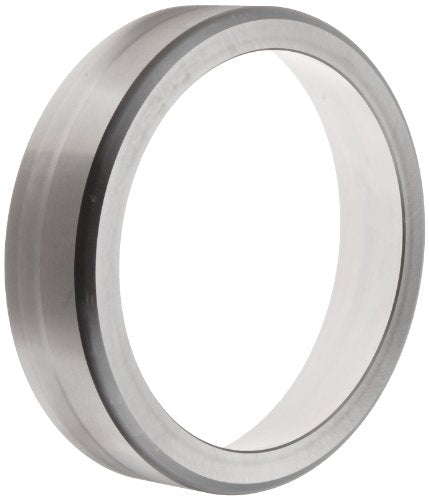

Timken HH228318 Tapered Roller Bearing, Single Cup, Standard Tolerance, Straight

This Timken HH228300 Series single cup matches with a single cone (inner ring assembly, sold separately) to assemble into a complete single tapered roller bearing, suitable for applications that support both radial and axial loads. This cup is matched to its cone assembly based on the load that the bearing needs to support, and if the bearing needs radial internal clearance to accommodate thermal expansion. Generally mounted in opposing pairs on a shaft to evenly distribute loads, this single tapered roller bearing assembly is stable in temperatures ranging from -54 to 120 degrees C (-65 to 250 degrees F). The single cup is made of Timken's high-alloy steel for durability, heat tolerance, and resistance to deformity under heavy loads. As part of a separable tapered roller bearing unit, this single cup has an open design that allows for lubrication and accurate adjustments. This single tapered roller bearing is for use in high-load, moderate-speed applications that include automotive axle systems and conveyor systems in heavy duty industries such as mining, construction and agriculture, among others.

Specifications

Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings a
