NEW Tech Digital HDMI SD Video to Digital DVB-C RF Encoder Modulator with USB

General Description

Voca DVB-C encoder modulator is Voca's consumer electronics which allow audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc.

It is an all-in-one device integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-C RF out.

The signals source could be from satellite receivers, closed-circuit television cameras, Blue-ray players, and antenna etc. its output signal is to be received by a ATSC standard TV,
It also can choose other rf:DVB-T/DVB-C//ATSC/ISDB-T rf optional.

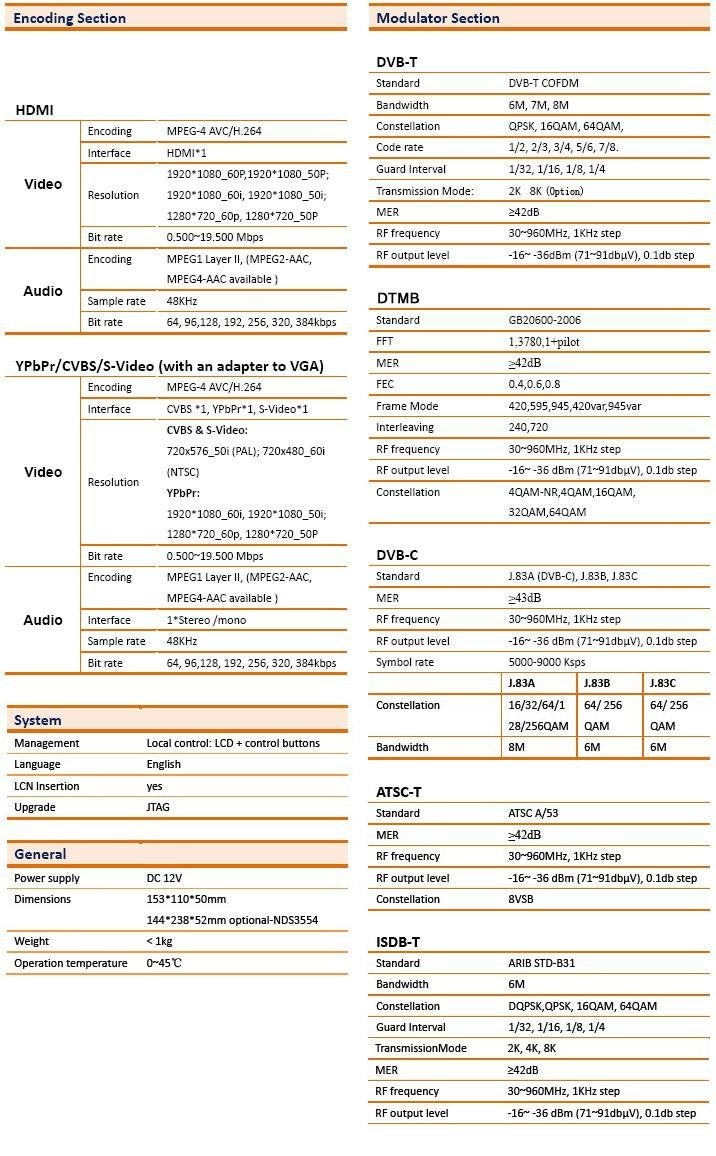

DVB-C
Standard:J.83A (DVB-C)( Constellation:16/32/64/128/256QAM,Bandwidth:8M), J.83B( Constellation:64/256QAM,Bandwidth:6M), J.83C( Constellation:64/256QAM,Bandwidth:6M)
MER:≥43dB
RF frequency:30~960MHz, 1KHz step
RF output level:-16~ -36 dBm (71~91dbµV), 0.1db step
Symbol rate:5000-9000 Ksps

System

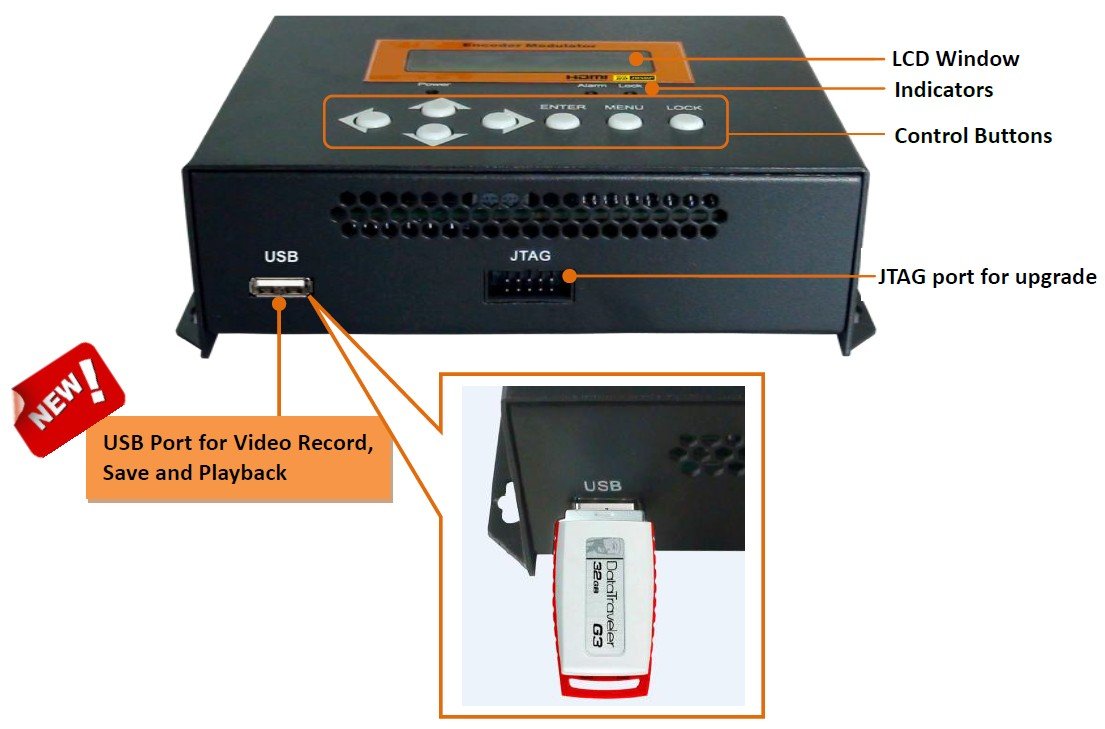

Management:Local control: LCD + control buttons
Language:English
LCN Insertion:yes
Upgrade:JTAG
General
Power supply:DC 12V
Dimensions:153*110*50mm
Weight:< 1kg
Operation temperature:0~45℃
